The receiving standard DMX512 (1990) signal, and the channel value is converted to LED brightness value.
Three - channel occupied DMX512, through three channels to achieve color mixing effect.
It has two working modes, DMX mode and built-in operation mode.
DMX signal interface - with two kinds of standards: XLR-3 and RJ45 interface.
The DMX address code can be set by dip switch.
It has 16 built-in modes and 32 speed grade.
The output using standard green plug terminals, with mounting holes, easy to install.
Input voltage: DC12~24V
Maximum output power: 60W 144W~ 288W
Dimming mode: PWM
Address range: 1~511
Operating temperature: -20-60℃
Protect level: IP20
colour: black
Material: plastic
Package Contents:

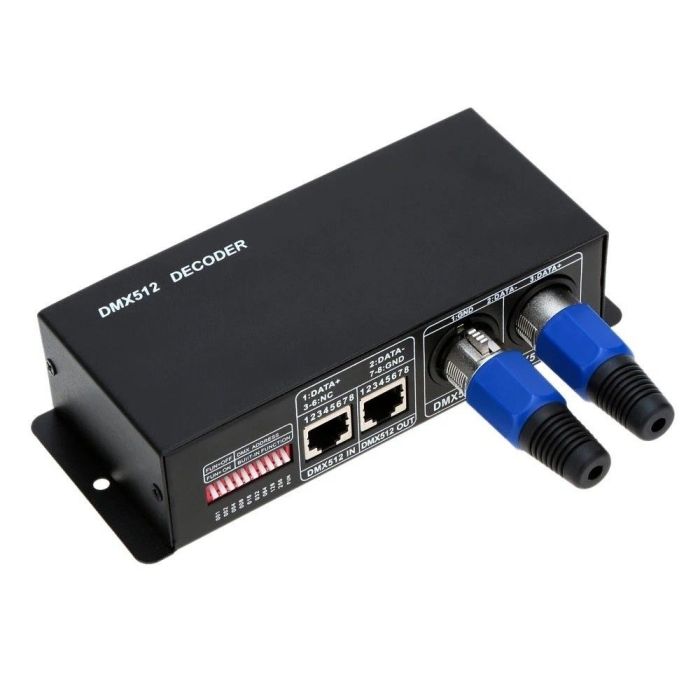

1 x 3CH DMX512 Decoder
2 x Canon plug
CE and RoHS approved
