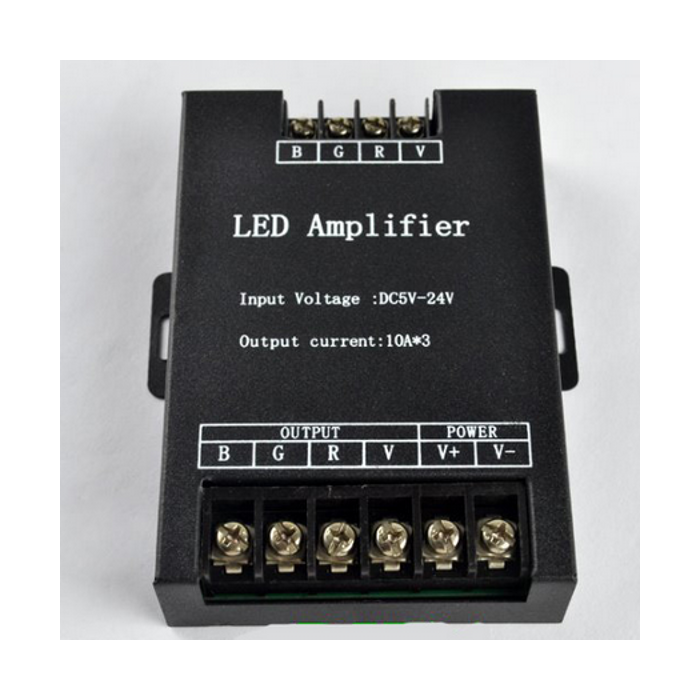

RGB LED Amplifier 8A--10A/Ch
Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output.
Used to extend your run of RGB 12/24v lighting product from your controller - Up to 300W@12vDC or 600W@24vDC
Supports PWM (Pulse Width Modulation) control
You can stack amps (2x repeaters connected = 16A/Ch)
Input Power: DC5V ~ DC24V
Output Power: 120(5v) 288W (12V) 576W (24V)
You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect another power supply.
Then, you can connect and control up to 8A/Ch of output (8x rolls of our RGB flexible LED strip).
Power supply is not included; we always suggest using switching mode power supplies for any application that involves LED lighting.
| Led Color |
N/A |
| Mounting Options |
Wall Mount, Other |
| Voltage |
5v-24v |
| Wattage |
10A/Ch |
| Power Rating Max Amps |
3Ch @ 10A /Ch 30A Max |
| Output Power |
120(5v) 288W (12V) 576W (24V) |
| Number Of Chanels |
3 |
| Rated Amps / Ch |
8A-10A Max 10A |
| Power Input: Connection Type, Voltage, Amperage |
Screw Terminal DC12V-DC24V (+)/(-) note for 12v strips use 12v input |
| Output Connection Type |
Screw Terminal Strip |
| Weight / Item |
380g |
| Product Size (L)x(W)x(H) |
(L) 5.82" x(W) 3.42" x(H) .90" in (L148×W87×H23mm) |
| Comes With |
RGB Indicators on outputs |
| Available Options |
We can also get these in a constant current version 350mA and 700mA |
Package Included:
1 Piece of 1 in 4 Out Waterproof RGB Amplifier LED Signal Booster 12V 12A
1 Piece of User's Manual
CE and RoHS approved
