3 Channels DMX512 Decoder Controller for RGB LED Strip Light
Description:
This DMX common controller adopts the advaned micro control unit, it receives standard DMX-512 digital control
singal and transformed it into PWM signal for driving LED; You could connect DMX module with DMX digital console
to achieve dimming or various changes in procedures.

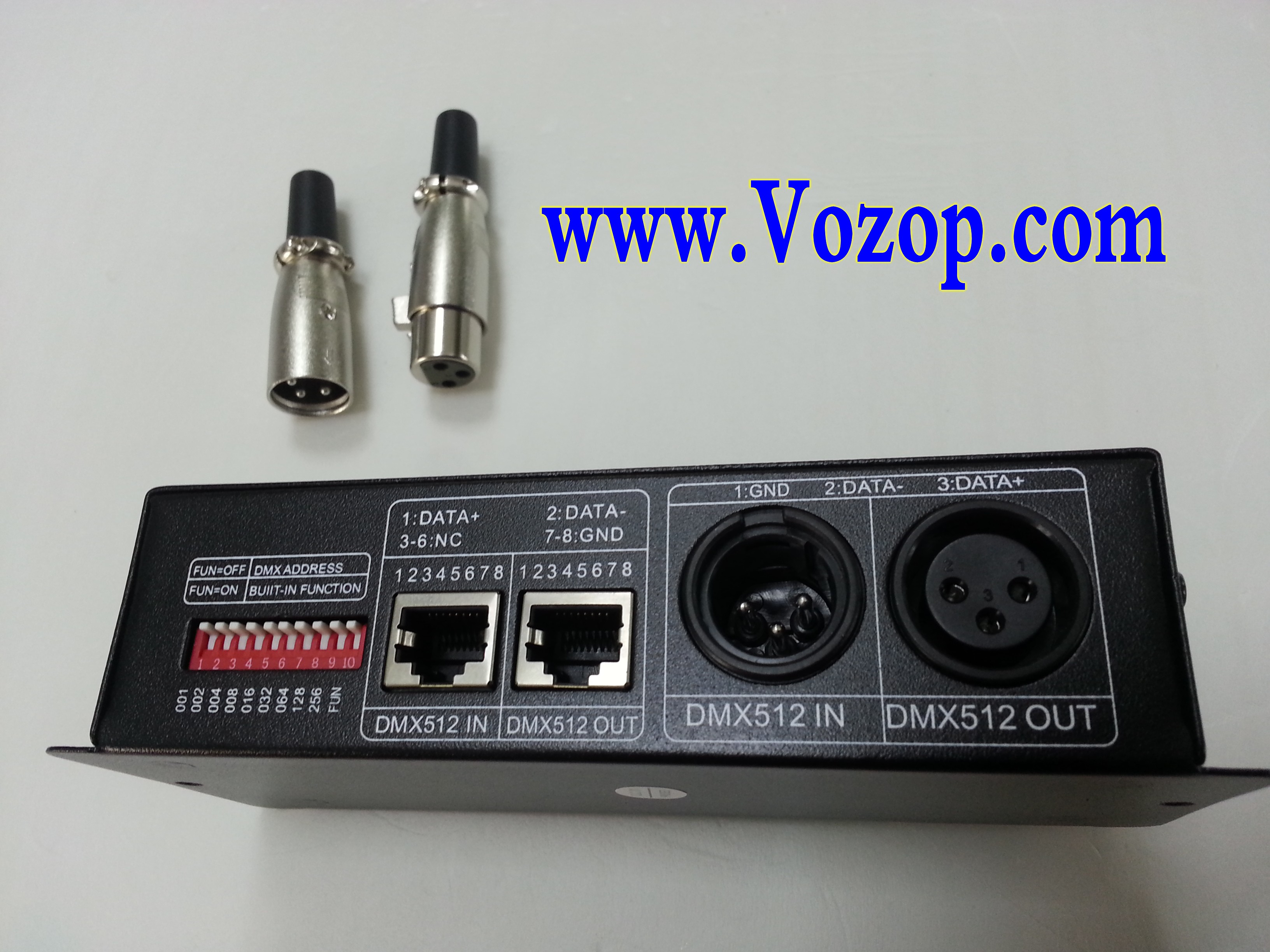

This is our new model with RJ-45 and 3-Pin XLR Jacks for DMX in and out.
You can mix and match the connections XLR in and RJ-45 Out or just use one or the other.
It also has built-in testing and stand alone features.
Simply turn on the last dip switch labeled 'fun' to enable stand alone mode (when you don't have a DMX single or for testing).
You can set the color or fade/flash modes and adjust the speed by using different combinations of the dip switches.
Specifications
1. Input Power：DC12V-DC24V
2. Output Current：4A per channel（total current: 12A）
3. Output Power：144W(12V) 288W(24V)
4. Brightness Control ：256 scales
5. DMX Address：3 channels
6. DMX512 Standard：DMX512
7. Product Dimension：166×67×41（mm）
8. Casing Size：185×85×59（mm）
9. Weight：0.85lb
Basic Functions
1. 256 scales of smooth brightness adjusting.
2. User addressable DMX interface-with easy dip-switch settings and testing modes.
3. High power output, 3 output channels.
4. DMX pass through and in/out connector for daisy chain configurations.
Includes solder on Male+Female DMX 3pin Jacks
Package Include (As Photo below):
1 Piece of 3 Channel DMX Common Controller DMX512 Decoder
2 Piece of RJ-45
1 Piece of Manual
CE and RoHS approved
