Summarization

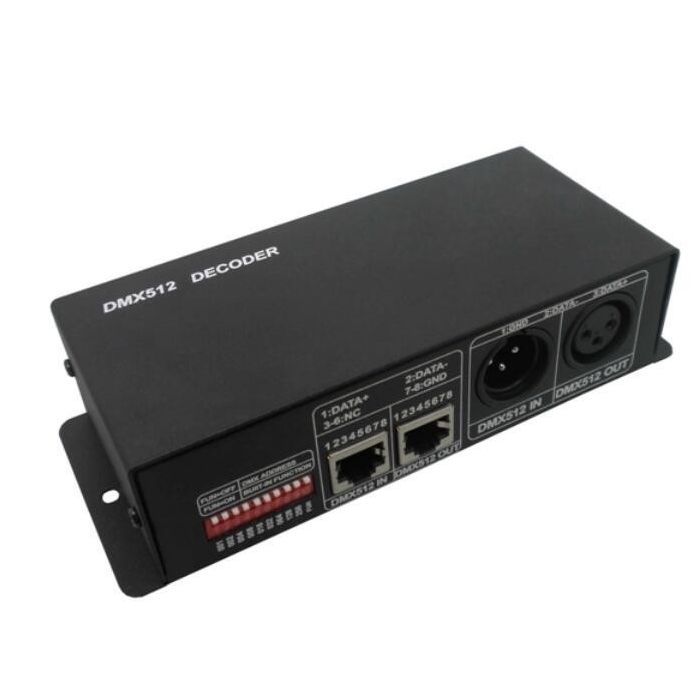

DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and
transformed it into PWM signal for driving LED; You could connect DMX module with DMX digital console to
achieve dimming or various changes in procedures.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC12-24V
Output: 3 channel
External dimension: L165*W65*H40（mm）
Packing size: L185*W85*H60（mm）
Net weight: 310g
Gross weight: 389.5g
Output current: each channel 4A
Output power: 12V:<144W, 24V:<288W
Package Content:
1 Piece of LED Controller
1 Piece of User's manual
CE and RoHS approved
