Each DMX common controller occupied 27 DMX addresses, adopt coding switch set address.
It is a Binary numerial code switch which is setting DMX original address code from 1 to 9 , 1 is the lowest,
and 9 is the highest, 511 address codes could be setted in all.
DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1),
the value of bit can be gotten , on the contrary , the value of bit is 0.
DMX signal can be received when coding switch FUN(10)=OFF.
There are several switches is ON at the same time , the great value is standard.
Product description

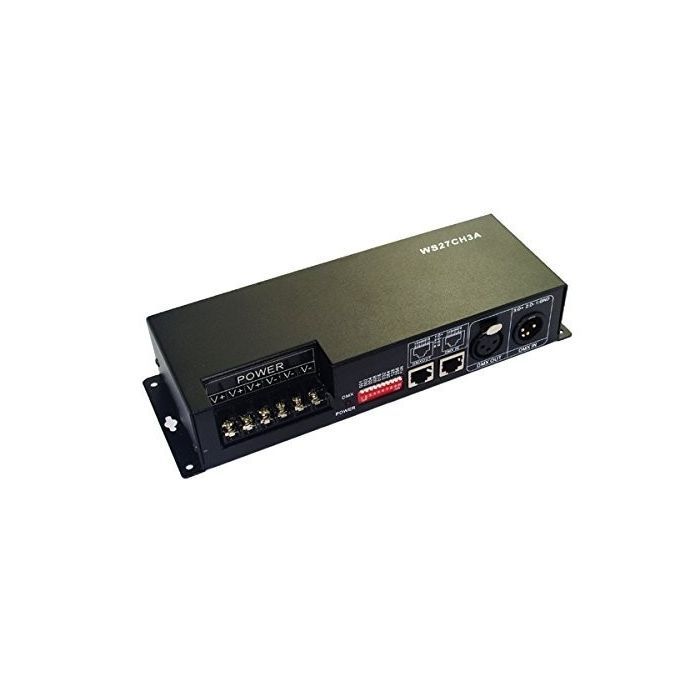

LED DMX512 Controller,for LED Strip Module
Specification:
Input/Output Voltage: DC12V-24V
Total Output of current:81A
Output:each channel max 3A
Channel:27 channel 9 group
Dimension:242x100x45mm
Weight:0.7Kg
Product Model: WS27CH3A
Package Included:
1 Piece of 27CH DMX512 Decoder 9Group 81A For LED DC12V-24V WS27CH3A
CE and RoHS approved
