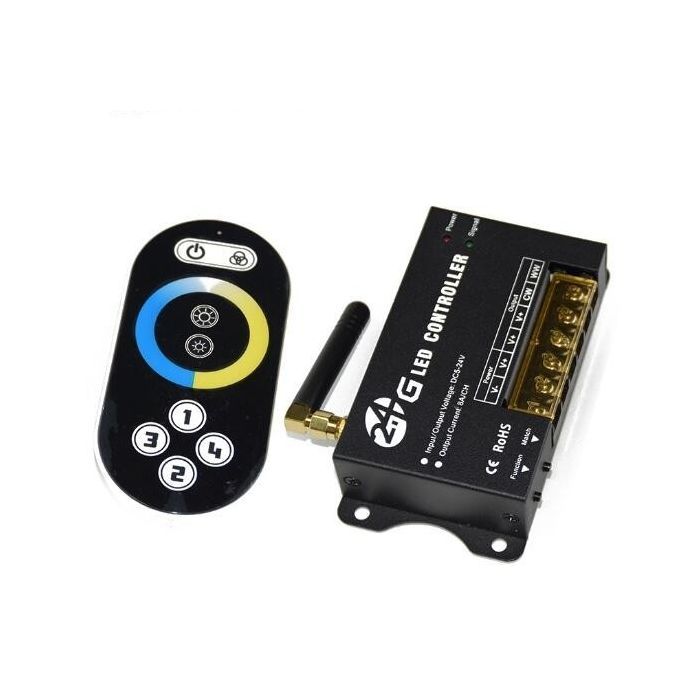

2.4Ghz RF LED Touch Controller Color Temperature Controller is newly introduced wireless high-power
LED controller of our company. It equips with touch remote control, touch remote control adopts high
precision capacitance touch control technology, you can select the color you need by one button.
It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion
caused by controlling repeated address code. Each controller can be equipped with four remote controls,
can achieve multiple controllers synchronization control. It is used for controlling a variety of lamp whose
source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc.
It has many advantages such as convenient to connect, easy to use and others. It can achieve single control
and group control, easy for user to use.
Product Description:
Working Temperature: -20-60°C
Supply Voltage: DC5V-24V
Output: 2 channels
Connection mode: common anode
External dimension: L120ΧW62ΧH24mm
Packing size: L185ΧW145ΧH52 mm
Net weight: 220g
Gross weight: 314g
Static power consumption: <1W
Output current: <8A (each channel)
Output power: 12V:<192W, 24V:<384W
Touch Remote Control
Working temperature: -20-60°C
Supply voltage: 1.5V * 3
Transmission frequency: 2.4Ghz
Standby power consumption: 0.015mW
Standby current: 60uA
Working current: 200uA
Emission current: 10mA
Remote distance: about 30m
Standby time: 6 months
Remote control weight: 94g
Package Included:
1 Piece of 2.4Ghz RF LED Touch Controller Color Temperature Controller
1 Piece of 2.4Ghz RF Remote
1 Piece of User's Manual
The Controller will be packed in box, similar to the box at following photo:
CE and RoHS approved
