This product is similar to the WS2812B protocol, and plenty of code is available for Arduino and other platforms.
And can be controlled by WS2811/WS2812B DC5V controller.
LED light source: SK6812 LED:
voltage:.............DC5V;
Power:.......................34.56watt/meter,34.56watt/roll;
LED resource:.............SK6812 led(5050 SMD RGB LED with built-in SK6812IC,similar with WS2811 IC)
Q'ty of LED: ...............144leds/meter,144leds/roll, each LED is separately controlled
IC Type: .....................SK6812IC(built inside the 5050 smd rgb led)
Q'ty of IC: ..................144IC/meter (1 IC drives 1 led chip);
Pixels:.........................144/meter;
Pitch: .........................6.944mm(1000/144);
Grey scale: ..................256;
Bits/color: ...................8-bits/color;24bit for RGB
FPC size: ....................Width: 12mm, High: 2.5mm;
FPC color: ...................Pls Choose,BLACK PCB or White PCB
Protection Rate: Pls Choose,
Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP65 Waterproof Outer Casing Silicone without 3M Tape on the Back
Colors: ........................Full color RGB, dream color changing;
Cuttable:......................every LED is cuttable;
Package: ....................1meter/reel in anti-static bag
Package Included:

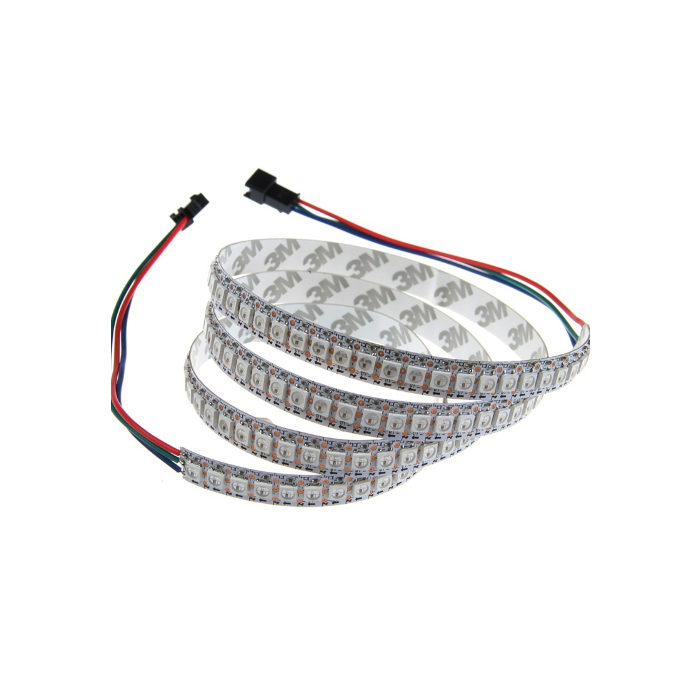

1 Roll of 1M SK6812 144LEDs/m 5V Addressable RGB LED Pixel Strip 144pixels/M Light
CE and RoHS approved
