Working voltage: DC 5V - 24V
Output :3 Channels
Output current:<4A(each channel)
Transmission/Receiving frequency:433.92Mhz
Speed Grade: 5 levels
Dynamic color:19 colors
Static Color: 20 Colors
Remote distance:>15meters at open area
Features:
1.Brightness adjustable
2.Adjust the light soft and stable, no flickering.
3.Easy to install and simple to use
4.Use for single color strip and LED lamps, such as wash wall lamp, glass curtain wall light
5.Constant voltage and constant current output
Description:

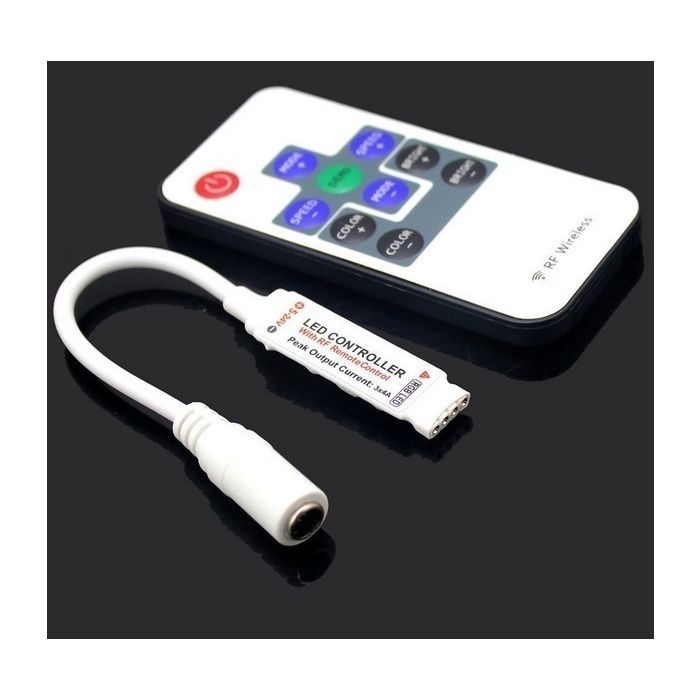

About the Mini Controller:
This mini controller is tiny in its size(easy to be concealed) but great in its function.Through connecting with this controller,
it will be able to control the LED RGB strips by the accompanied RF controller,achieving different modes and colors.
About the RF Remote:
The RF wireless remote signal can pass through barrier, it gets a longer control distance(about 15 meters at openarea)
so it is not necessary to aim at the main unit when operating.
SPECIFICATIONS
Model: Mini RGB LED Controller with RF Remote
SKU: LC-LF-6RGB
Dimensions: 1.5"L x 0.5"W x 0.2"H 4.0" Lead Wire
Type: 4 Pin, 3 Loop, Common Anode
Constant Voltage DC Power: 5-24VDC 3A per Channel Max
Watts: 12VDC-108W 24VDC-216W
Rating: Dry
Warranty Period: 1 Year
Package Include:
1 Piece Mini RF RGB LED Controller
1 Piece RF Remote
1 Piece User Manual
CE and RoHS approved
